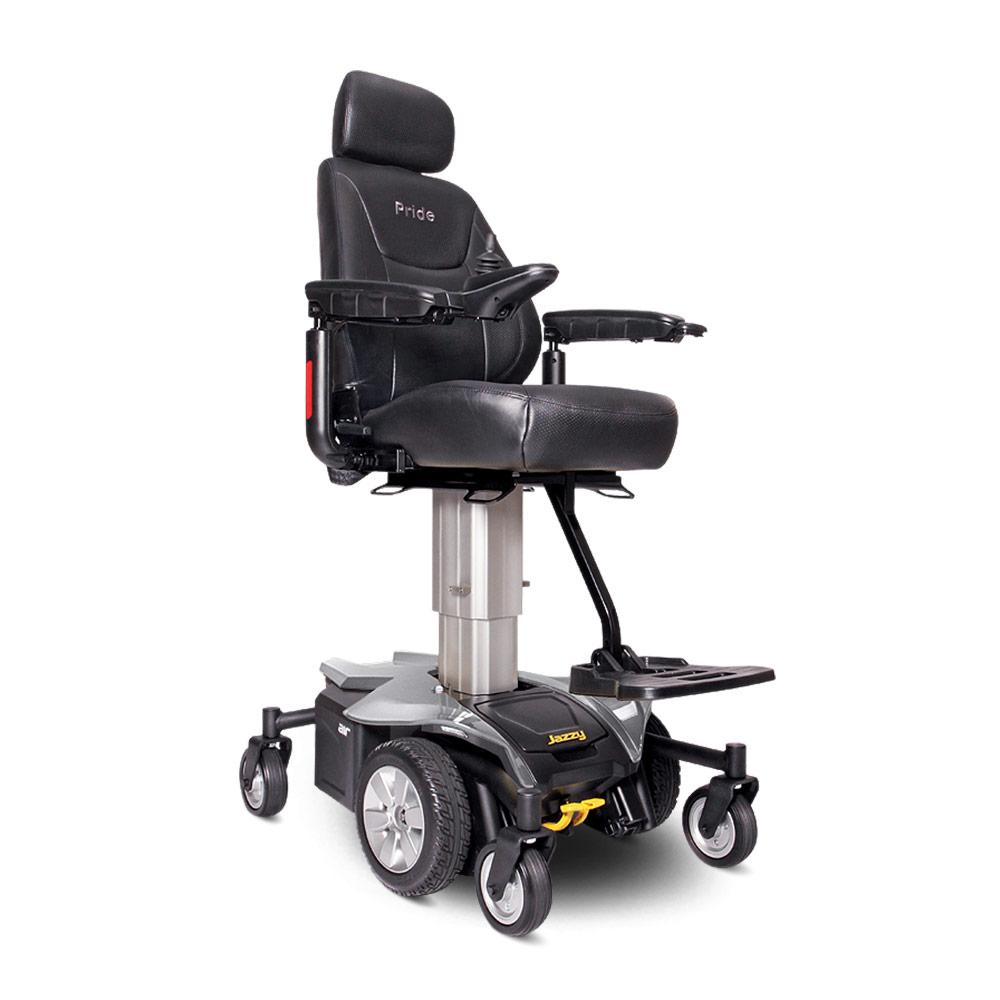

The Pride Jazzy Air is a mid-wheel drive power wheelchair with a powered elevating seat. The seat raises up to 10 inches in 16 seconds. The chair drives at up to 3.5 mph while elevated and up to 4 mph in the lowered position, extending seated reach to countertop, table, cabinet and shelf height.
Mid-Wheel 6 drive with Active-Trac suspension handles both indoor and outdoor surfaces, and a 22.5" turning radius suits tight interiors. The high-back reclining seat has adjustable depth, with armrests adjustable for angle, height and depth. Two 12V U-1 batteries deliver a range of up to 15 miles per charge. An intelligent electronic regenerative braking system with disc park brake controls stopping, and LED lighting is fitted front and rear. Weight capacity is 300 lbs.
Specification
| Specification | Details |
|---|---|
| Weight Capacity | 300 lbs |
| Turning Radius | 22.5" |
| Overall Width | 23.4" at wheels / 25.5" with armrests |
| Overall Length | 38.5" |
| Maximum Speed | Up to 4.0 mph (non-elevated) / Up to 3.5 mph (elevated) |
| Ground Clearance | 2.5" |
| Front Wheels | 6" solid casters |
| Drive Wheels | 10" |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, mid-wheel drive system |
| Braking System | Intelligent electronic regenerative braking with disc park brake |
| Suspension | Advanced suspension system for indoor and outdoor stability |
| Seat Type | High-back, reclining, adjustable depth seat |
| Seat Size | 18" W x 18"–20" D (standard) |
| Seat-to-Floor Height Range | 23" – 33" |
| Armrests | Angle, height, and depth adjustable |
| Lap Belt | 60" |
| Electronics | 40A controller system |
| Battery Type | Two 12V U-1 batteries (40 Ah optional) |
| Battery Range | Up to 15 miles per charge |
| Battery Weight | 25 lbs each |
| Battery Charger | 3.5A off-board charger |
| Weight of Heaviest Piece | 100 lbs |
| Seat Weight | 41 lbs |
| Warranty |
5-year limited on frame 13-month limited on electronics 13-month limited on drive motors |
