Jazzy EVO 614 HD
Jazzy EVO 614 HD
Couldn't load pickup availability
- SECURE PAYMENT
Price Match Guarantee
- FREE STANDARD SHIPPING
- Description
- Specifications
- Testing Standards & Warranty
- Manuals
- Why We Like It

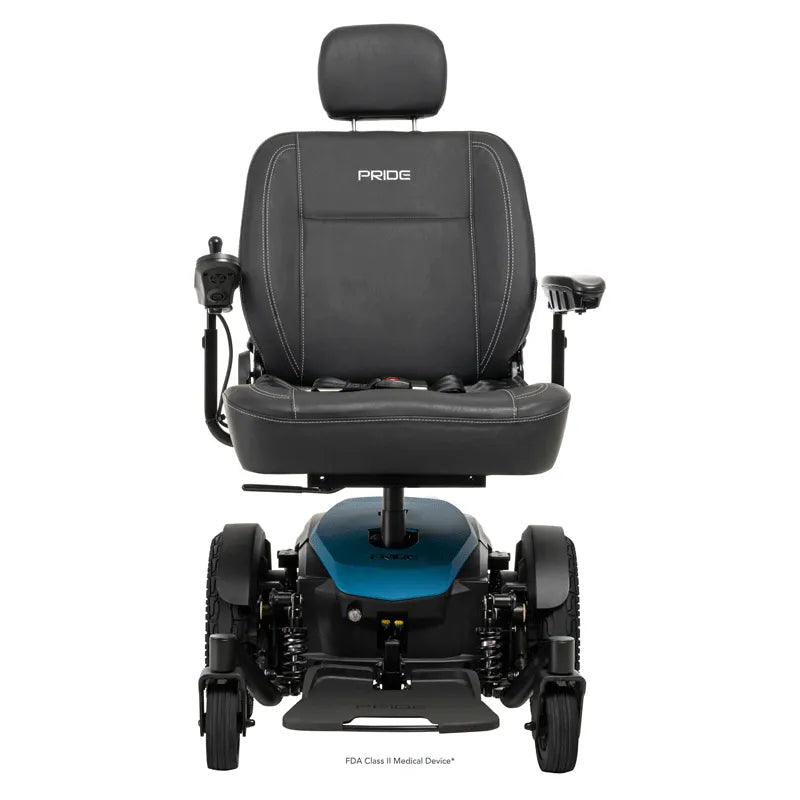

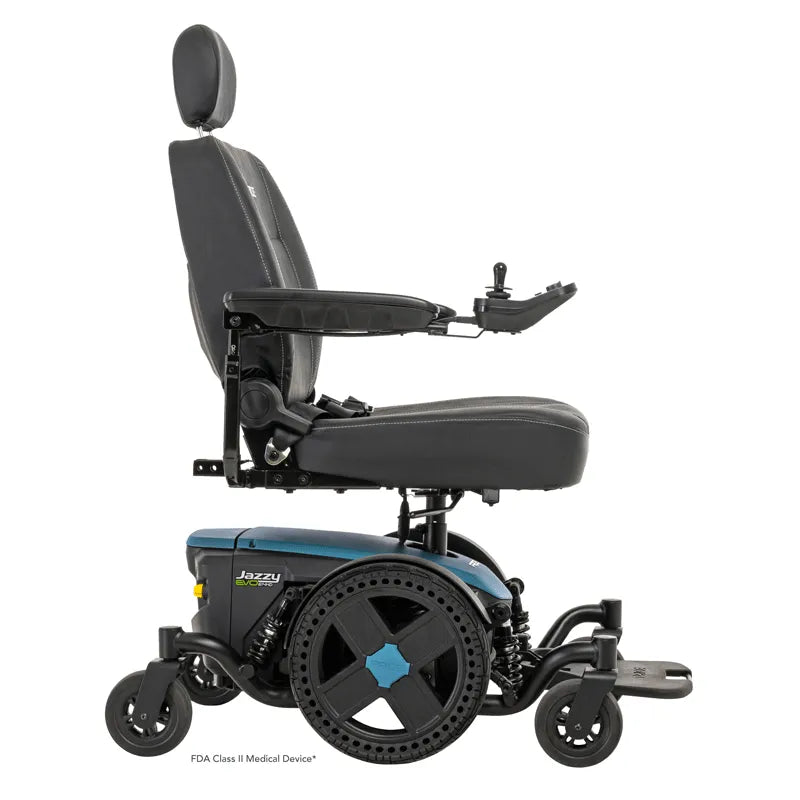

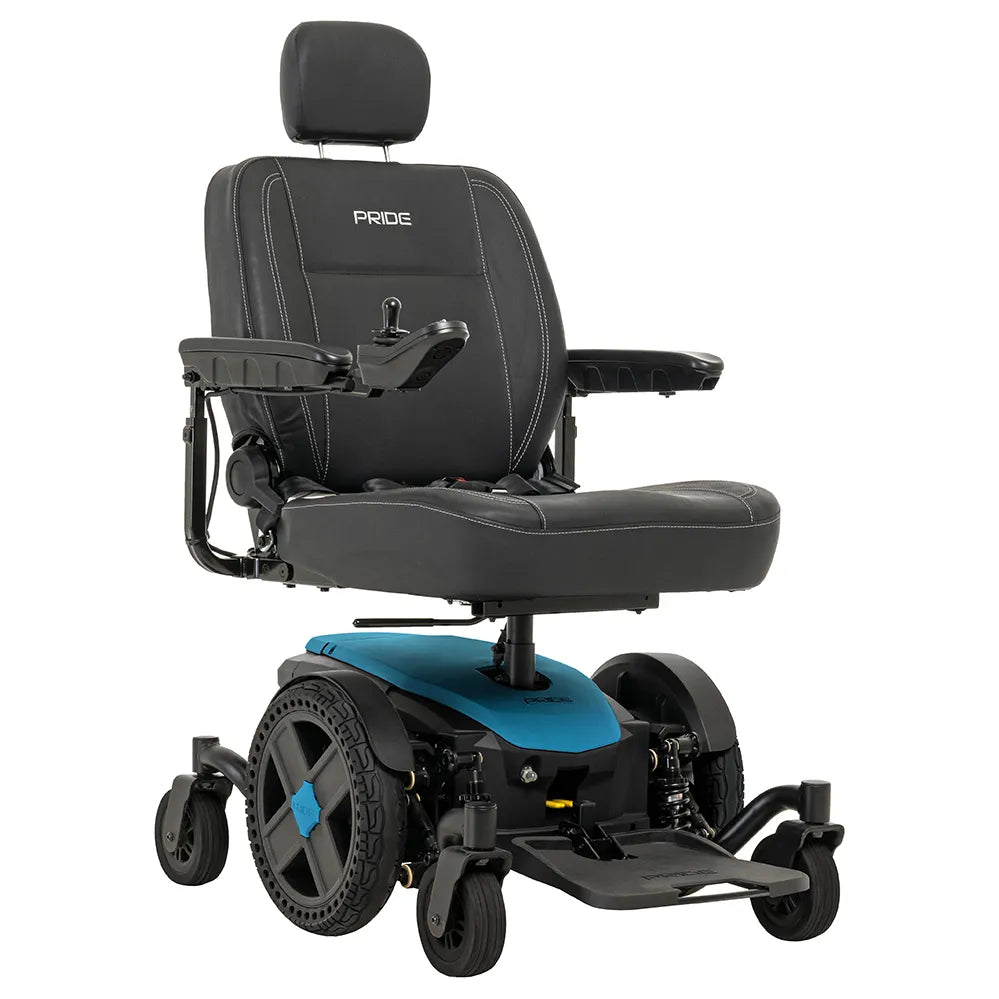

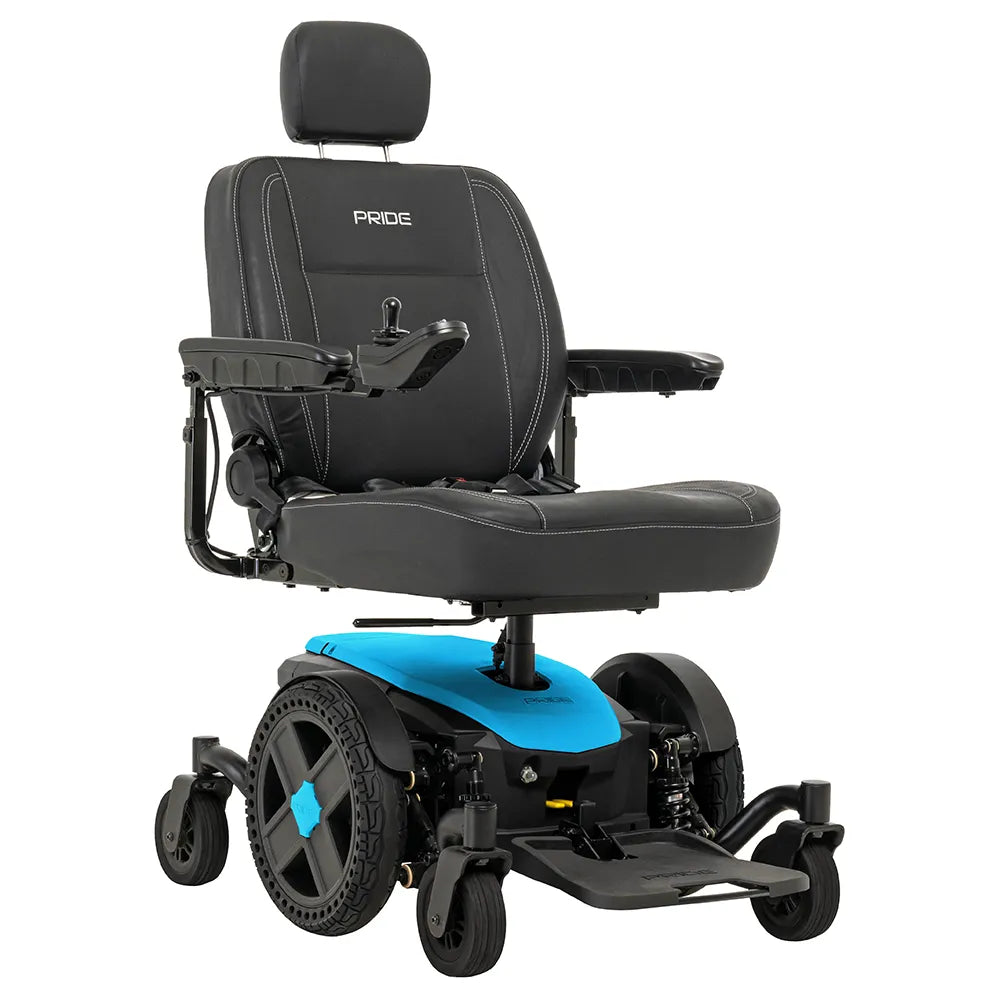

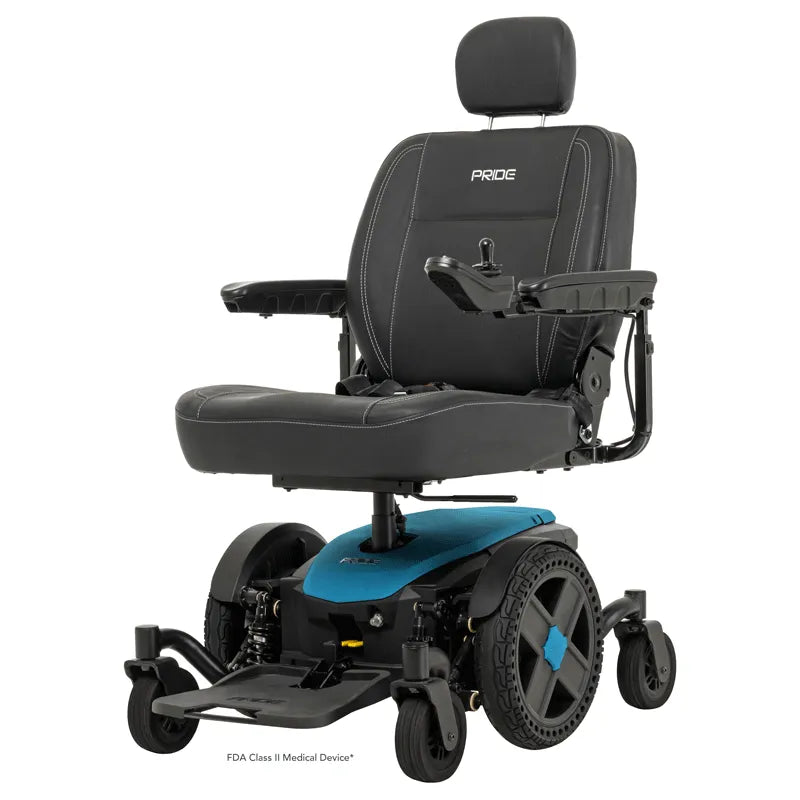

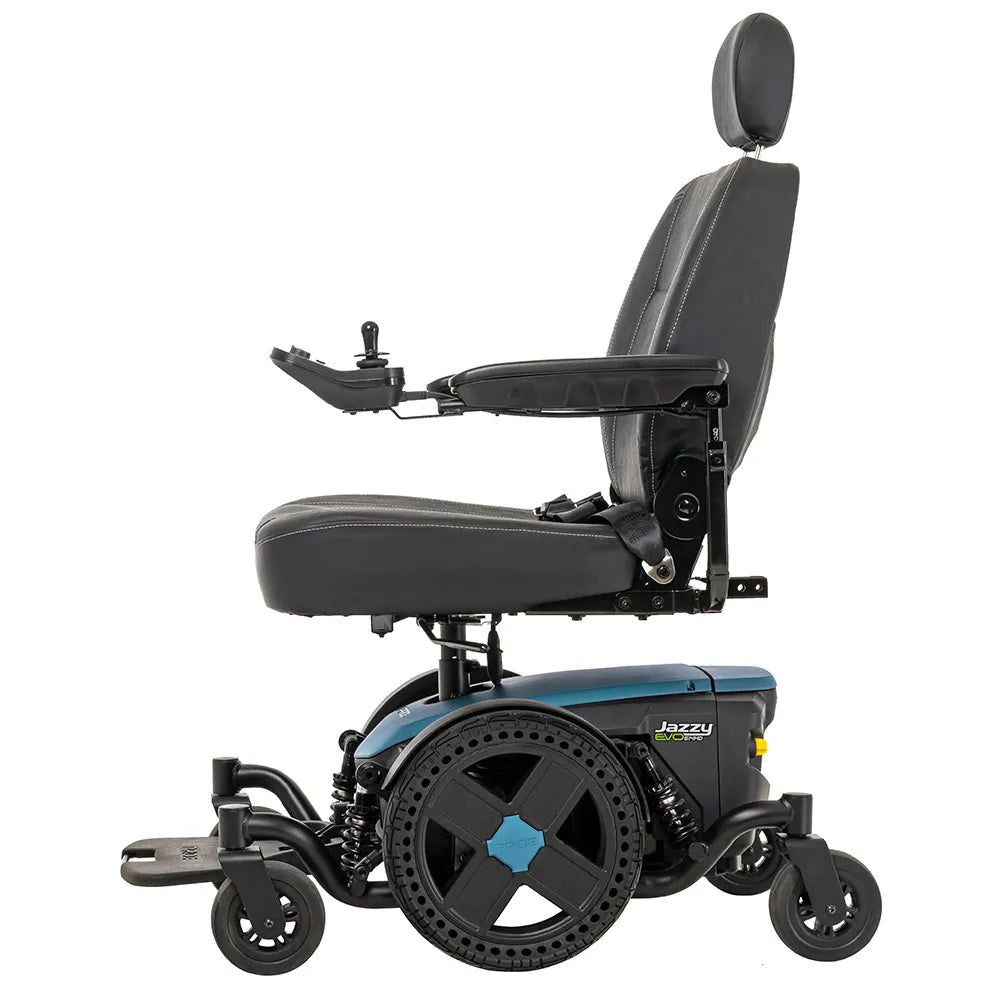

Meet the new Jazzy® EVO 614 - faster, stronger and more rugged. Versus the retired Jazzy 614, the new Jazzy EVO 614 has a 4.5 mph top speed, increased ground clearance to 3" and new 13.75" drive wheels so you sit higher and tackle uneven terrain with ease.
The Pride Jazzy® EVO 614 Power Wheelchair features perforated tires for a softer ride over varied terrain and for enhanced performance it is equipped with the Active-Trac® ATX Suspension. It has a powerful motor and a sturdy frame with a heavy duty seat post that swivels for ease of transferring out of the chair. The chair weight capacity of 300 lbs, or upgrade to the HD for 450 lbs and has an option of a Captain Seat or a Solid Seat pan to choose a cushion of your liking. For your comfort the armrests are height, width, depth and angle adjustable. While the seat width is available up to 22" in width.
| Drive Range: | 21.50 miles |
| Top Speed: | 4.88 mph |
| Disassembles/Folds: | No |
| Overall Width: | 25.75" |
| Overall Length: | 40.50" |
| Heaviest Piece: | 125.7 lbs. |
| Turning Radius: | 22.00" |
| Ground Clearance: | 3.00" |
| Drive Type: | Mid Wheel Drive |
| Armrest Options: |
Height Adjustable Flip-Back Width Adjustable |
| Seat Options: |
High-Back Seat Captain's Seat |
| Power Chair Seat Width: |
18" 20" 22" |
| Seat Width Ranges: |
18" - 19" 20" - 21" 22" - 23" |
| Seat Depths: |
18" 20" 22" |
| Seat to Floor Height: | 22 |
| Maximum Seat to Floor Height: | 24.00" |
| Joystick Options: |
Right Left Swing-Away |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Anti-Tip Size: | 6" |
| Caster Size: | 6" |
| Caster Type: | Solid |
| Battery Pack Weight: | 72.00 lbs. |
| Weight Without Batteries: | 183.50 lbs. |
| Standard Seat Weight: | 57.80 lbs. |
| Suspension: | Yes |
| Handles Thresholds of 2" or More: | Yes |
| Handles Thresholds of 2" or Less: | No |
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are FDA medical devices that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regimen developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
In addition to “real world” testing developed by Pride during more than thirty years of designing Lift Chairs, our products are subjected to a host of standardized testing criteria, including but not limited to:
- ANSI/AAMI/ES60601-1, Medical Electrical Equipment--Part 1: General Requirements for Basic Safety and Essential Performance, and ANSI/AAMI/IEC 60601-1-2, Medical Electrical Equipment--Part 1-2: General Requirements for Basic Safety and Essential Performance--Collateral Standard: Electromagnetic Disturbances--Requirements and Tests
- ANSI/AAMI/ISO 10993-5, Biological Evaluation of Medical Devices--Part 5: Tests for In Vitro Cytotoxicity, and ANSI/AAMI/ISO 10993-10, Biological Evaluation of Medical Devices--Part 10: Tests for Irritation and Skin Sensitization
- IEC 62304, Medical Device Software--Software Life Cycle Processes
- IEC 60335-1:2012, Safety of Household Electrical Appliances
- ISO 14971 Medical devices – Application of risk management to medical devices
- EN 12182, Assistive products for persons with disability. General requirements and test methods
- Static Load and Stability Tests
- Strength & Fatigue Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Armrest Force Test
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- 7-year prorated warranty
