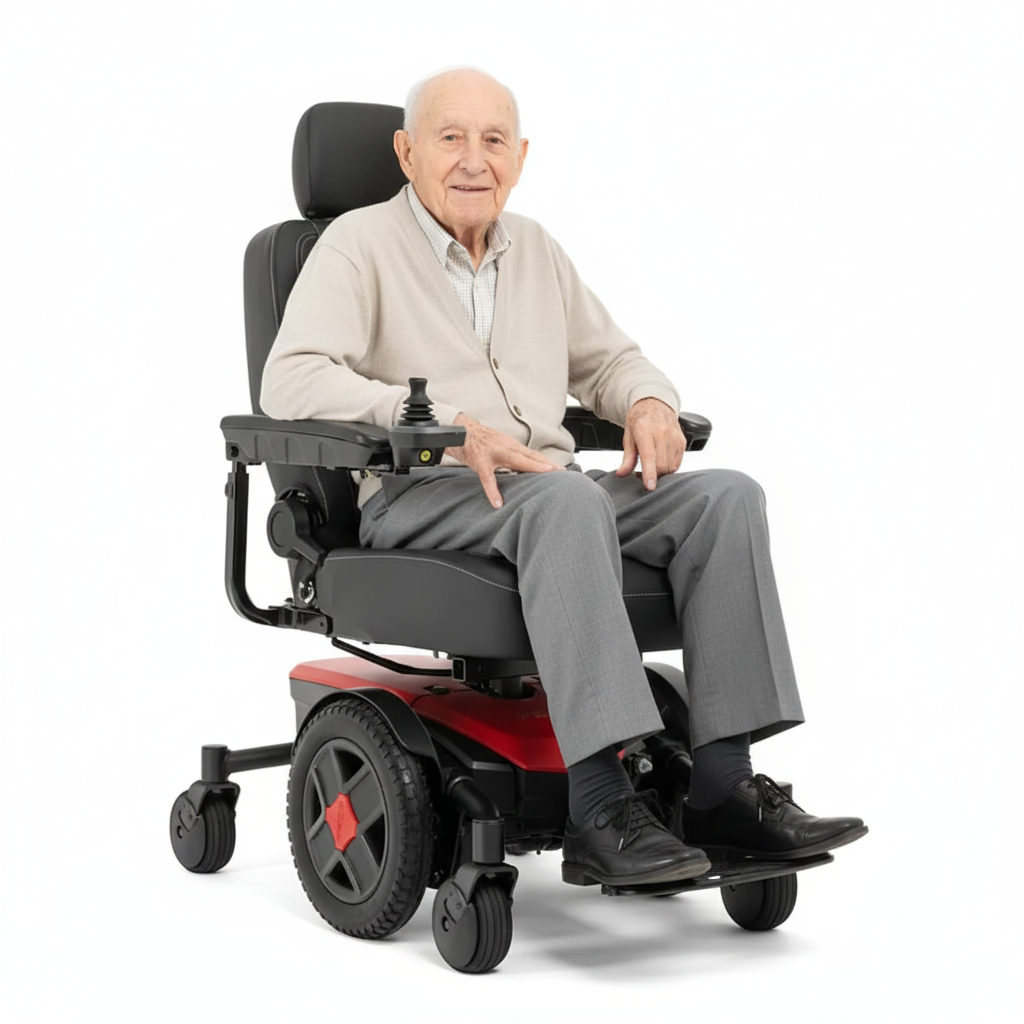

Jazzy EVO 613
Jazzy EVO 613
Couldn't load pickup availability
- SECURE PAYMENT
Price Match Guarantee
- FREE STANDARD SHIPPING
- Description
- Specifications
- Testing Standards & Warranty
- Manuals
- Why We Like It
The new Jazzy EVO 613 is available with either the standard SLA U-1 batteries or upgraded Lithium ion batteries. Both options delivery plenty of power, speed, and charge range. The Lithium ion version will give you a faster charging time, sustained power performance, lighter weight, and a longer life. The look of the EVO is sleek and modern. 6 color options are available in a muted matte finish. Comfort and convenience come through in the EVO’s memory foam high-back seat which allows you to adjust your seat depth and go into a semi-recline. Good posture and proper positioning are achieved with the EVO’s height, width, and angle adjustable armrests. The highlight of the seat is its single post which allows the seat to swivel.
| Drive Range: | 17.00 miles |
| Top Speed: | 5.00 mph |
| Disassembles/Folds: | No |
| Overall Width: | 22.00" |
| Overall Length: | 35.00" |
| Heaviest Piece: | 94 lbs. |
| Turning Radius: | 22.00" |
| Ground Clearance: | 3.00" |
| Tire Type: | Solid |
| Drive Type: | Mid Wheel Drive |
| Foldable: | No |
| Armrest Options: |
Height Adjustable Flip-Back |
| Legrest Options: | Footplate |
| Seat Options: |
Reclining Back High-Back Seat |
| Power Chair Seat Width: |
16" 18" 20" |
| Seat Width Ranges: |
17" or less 18" - 19" 20" - 21" |
| Seat Depths: |
16" 18" 20" |
| Seat to Floor Height: | 21 |
| Maximum Seat to Floor Height: | 21.00" |
| Back Height: | 20" |
| Joystick Options: |
Right Left |
| Battery Type: | Two 12 volt, U-1 battieries or LI |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 13" |
| Caster Size: | 5" |
| Rear Caster Size: | 5" |
| Caster Type: | Solid |
| Base Weight: | 94.00 lbs. |
| Battery Pack Weight: | 74.00 lbs. |
| Standard Seat Weight: | 48.00 lbs. |
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are FDA medical devices that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regimen developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
In addition to “real world” testing developed by Pride during more than thirty years of designing Lift Chairs, our products are subjected to a host of standardized testing criteria, including but not limited to:
- ANSI/AAMI/ES60601-1, Medical Electrical Equipment--Part 1: General Requirements for Basic Safety and Essential Performance, and ANSI/AAMI/IEC 60601-1-2, Medical Electrical Equipment--Part 1-2: General Requirements for Basic Safety and Essential Performance--Collateral Standard: Electromagnetic Disturbances--Requirements and Tests
- ANSI/AAMI/ISO 10993-5, Biological Evaluation of Medical Devices--Part 5: Tests for In Vitro Cytotoxicity, and ANSI/AAMI/ISO 10993-10, Biological Evaluation of Medical Devices--Part 10: Tests for Irritation and Skin Sensitization
- IEC 62304, Medical Device Software--Software Life Cycle Processes
- IEC 60335-1:2012, Safety of Household Electrical Appliances
- ISO 14971 Medical devices – Application of risk management to medical devices
- EN 12182, Assistive products for persons with disability. General requirements and test methods
- Static Load and Stability Tests
- Strength & Fatigue Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Armrest Force Test
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- 7-year prorated warranty
